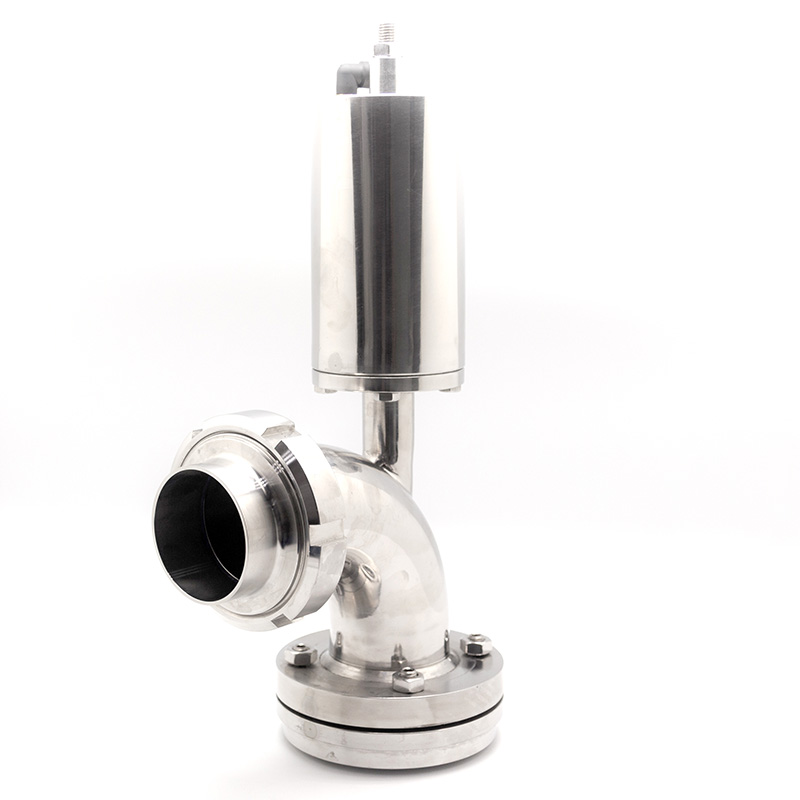

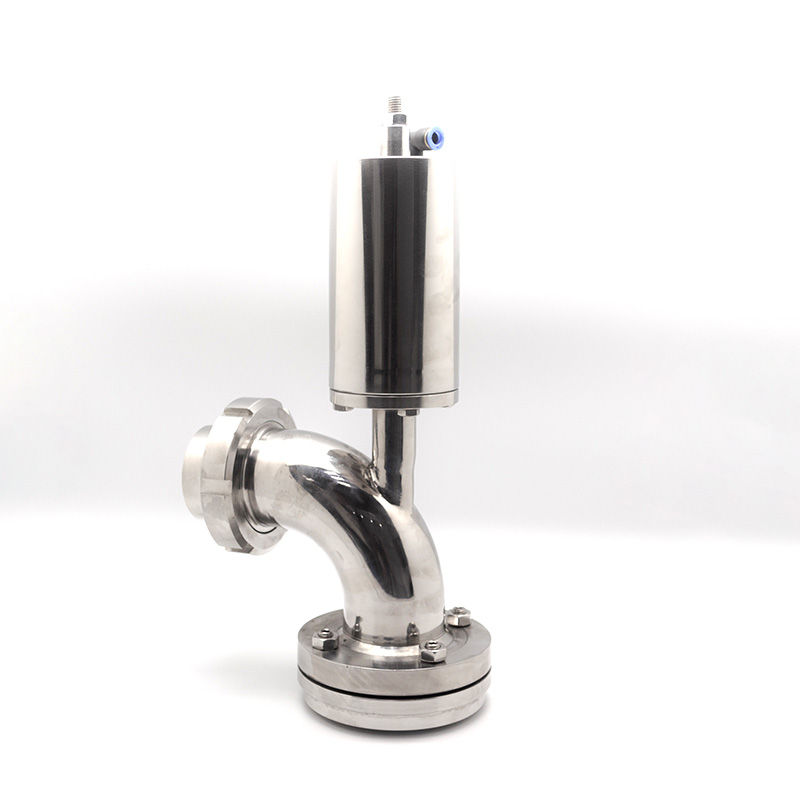

90 Degree Elbow Tank Bottom Seat Valve

Application

VT series The tank bottom seat valve is single-seat valve pneumatically, which is used for assembly at the bottom of the tanks in the diary, food-processing, beverage production, pharmaceutical and fine chemicals industries

Material

Model number: VT

Material: Stainless steel

Gasket(standard): EPDM according to FDA 177.2600

Internal surface finish: Ra ≤0.8µm

External surface finish：Bright polish

Options

Body material: AISI304 ,AISI316L

Connections: DIN, Clamp, SMS, RJT, FIL-IDF, Flange, etc

Size: 1"-4" DN25-DN100

Design Features

Various standards can be provided: DIN, SMS, ISO / IDF, BS / RJT, and ASME / BPE.

Sizes: DN25 / 1" to DN100 / 4"

Seals comply with FDA 21CFR 177. 2600.

The valve body can be customized with a wide selection of different connections.

Technical Specification

Available in sizes from DN25 / 1" to DN100 / 4"

Max. pressure: 10bar (145psi); DN25 ~ 100; 8bar (120psi) DN125 ~ 150

Temperature range: 14 ~ 248°F (-10 ~ 120°C), EPDM

End connections: butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.

Surface treatment: Ra 16 ~ 32µin (0.4 ~ 0.8µm)
