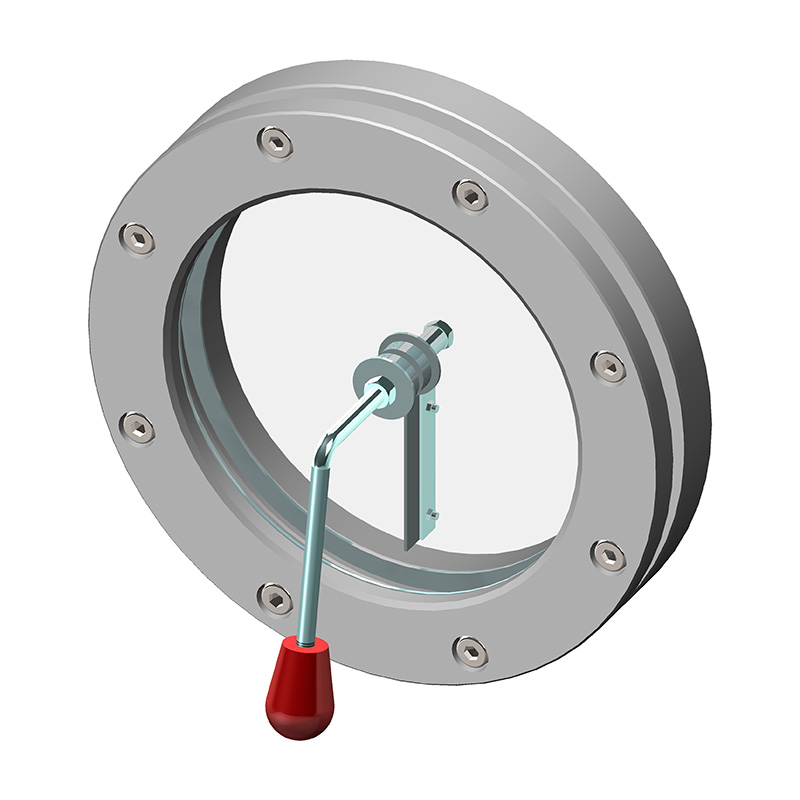

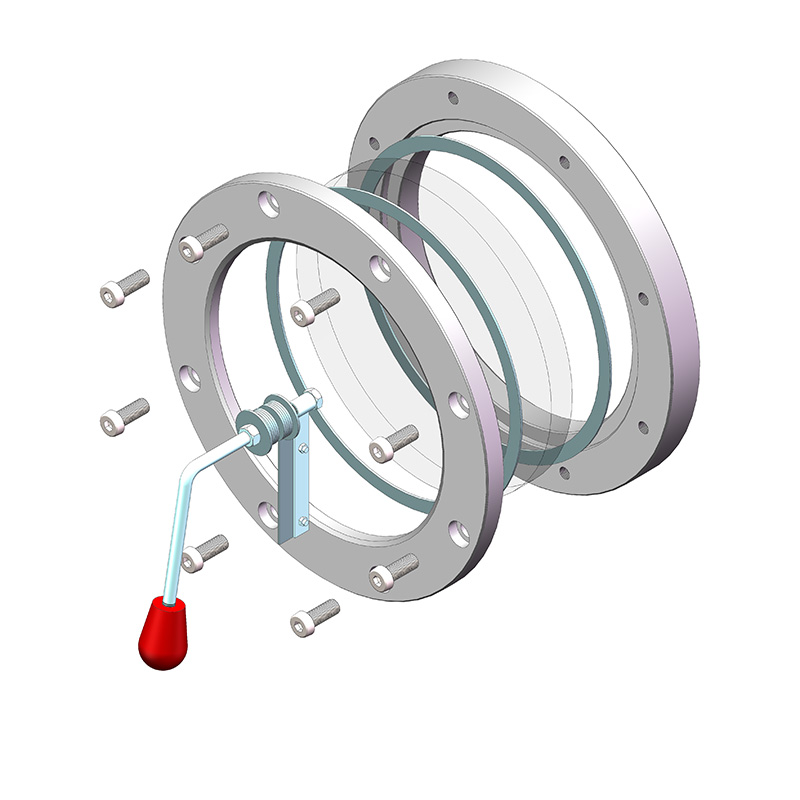

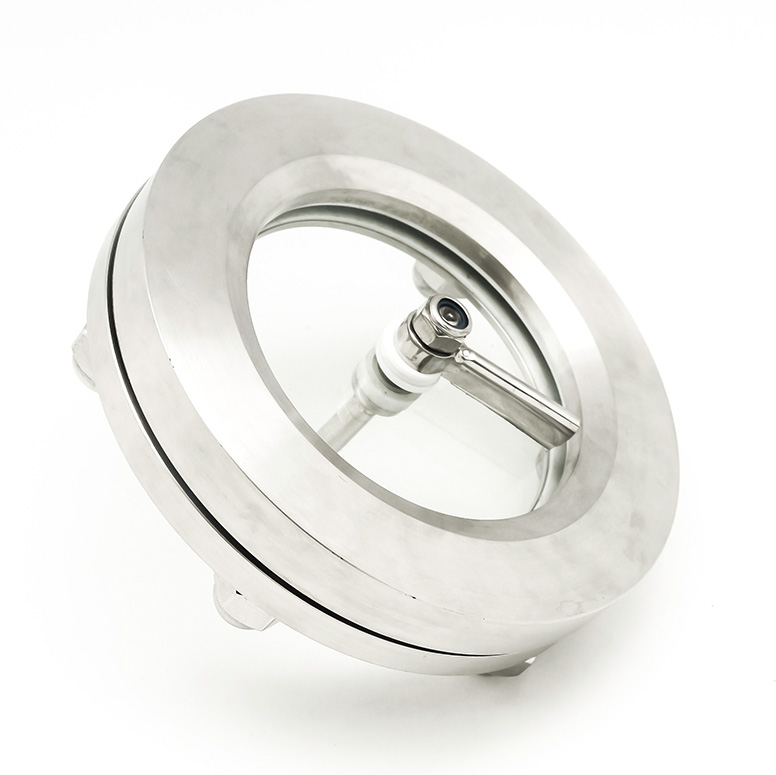

TSF02 Flange Type Sight Glass with Brush

TSF Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Inquire Now PDF Datasheet

Application

TSF Series flange type sight glass is widely used in food, wine-producing, beverage and pharmacy industries etc. For it is convenient to view the condition of equipment running state and system work state.

Materials

  • Body Materials: AISI-304 or AISI-316L

  • Tempered glass

  • Gasket Material:Silicon, EPDM, FRM

  • Seat and gasket  comply with FDA 21CFR177.2600

Standard Design

  • Available in size from 1"-4", DN25-DN100 or others upon requirement

  • Standards: DIN, SMS, ISO / IDF, BS / RJT, ASME / BPE.

  • End connections: butt-welded, sanitary clamp, or others upon request

  • Vertical or horizontal installation

  • 360 degree; view angle

Technical Specification

  • Temperature range: 14 ~ 248℉ (-10 ~ 120℃), Silicon

  • Surface treatment: CNC machining
