Stainless Steel KF Hose Adaptor

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

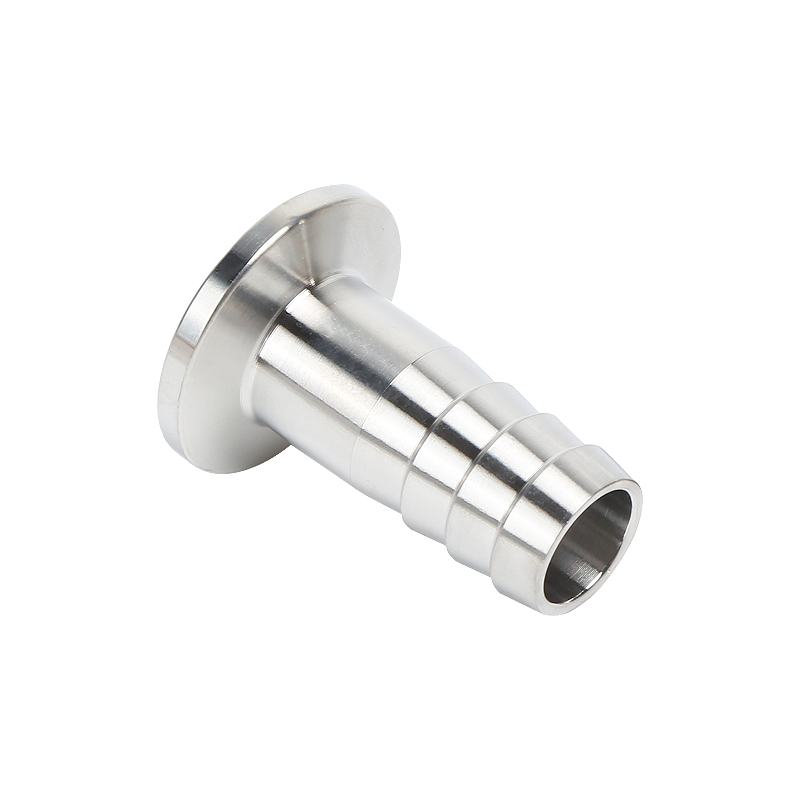

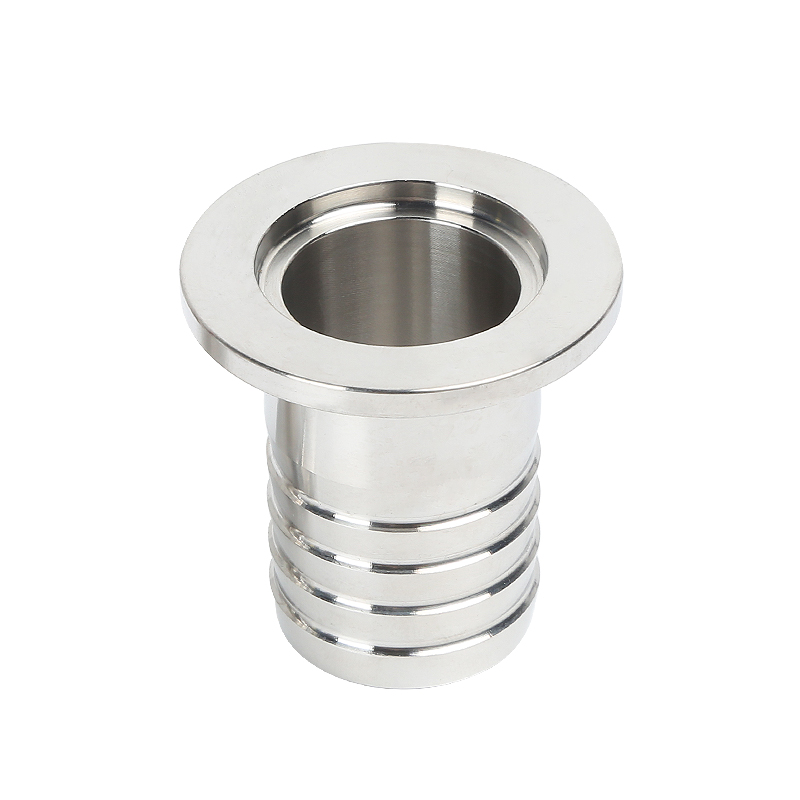

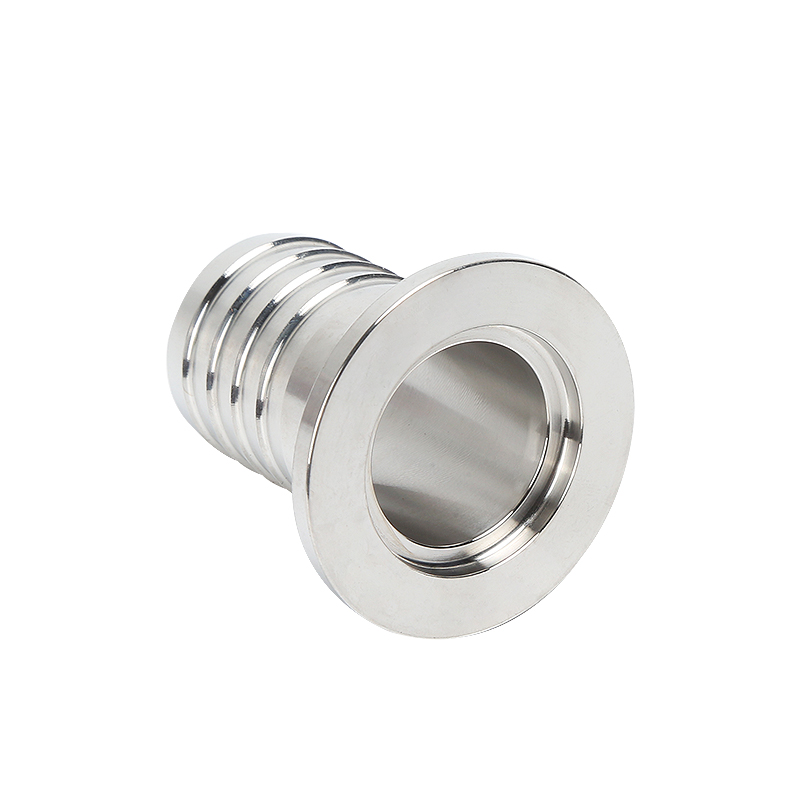

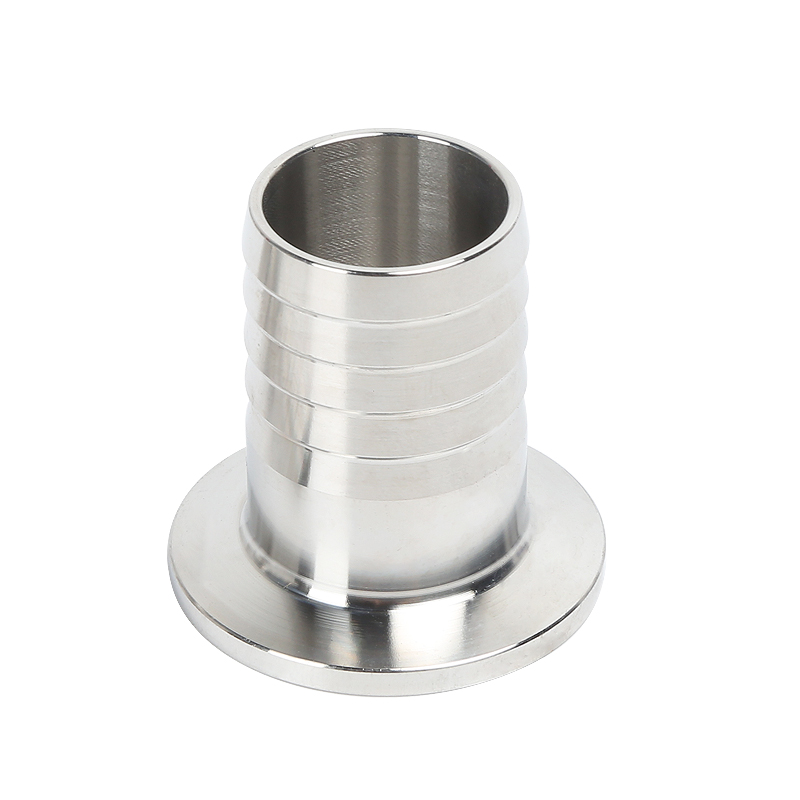

KF Hose Adaptor

* Material:SS304/SS316L

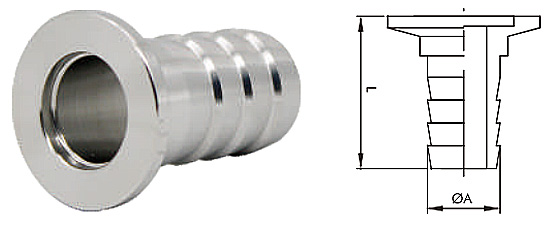

	Model for 304	Size		A/mm		L/mm		N.W./g
	FLH811K10D84S1	KF10x8mm		8		40
	FLH811K10D104S1	KF10x10mm		10		40
	FLH811K16D64S1	KF16x6mm		6		40
	FLH811K16D84S1	KF16x8mm		8		40
	FLH811K16D104S1	KF16x10mm		10		40
	FLH811K16D124S1	KF16x12mm		12		40
	FLH811K16D164S1	KF16x16mm		16		40
	FLH811K16D204S1	KF16x20mm		20		40
	FLH811K25D64S1	KF25x6mm		6		40
	FLH811K25D84S1	KF25x8mm		8		40
	FLH811K25D104S1	KF25x10mm		10		40
	FLH811K25D124S1	KF25x12mm		12		40
	FLH811K25D164S1	KF25x16mm		16		40
	FLH811K25D204S1	KF25x20mm		20		40
	FLH811K25D254S1	KF25x25mm		25		40
	FLH811K40D164S1	KF40x16mm		16		50
	FLH811K40D204S1	KF40x20mm		20		50
	FLH811K40D254S1	KF40x25mm		25		50
	FLH811K40D324S1	KF40x32mm		32		50
	FLH811K40D404S1	KF40x40mm		40		50
	FLH811K50D254S1	KF50x25mm		25		50
	FLH811K50D324S1	KF50x32mm		32		50
	FLH811K50D404S1	KF50x40mm		40		50
	FLH811K50D504S1	KF50x50mm		50		50
