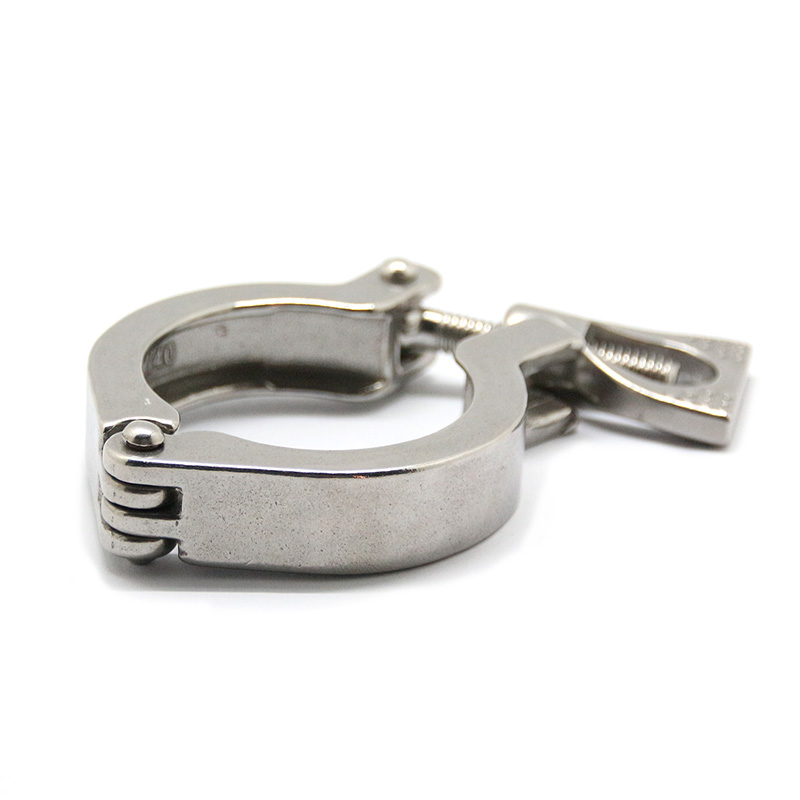

KF Single Pin Clamp Aluminum

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

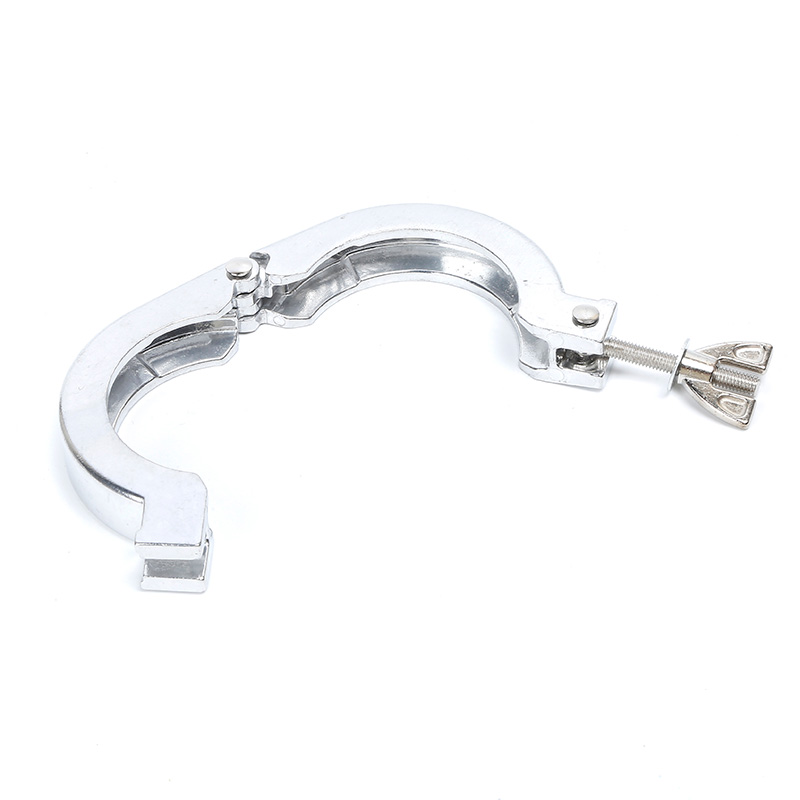

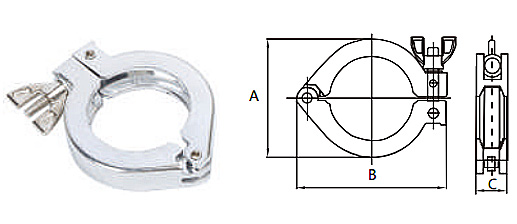

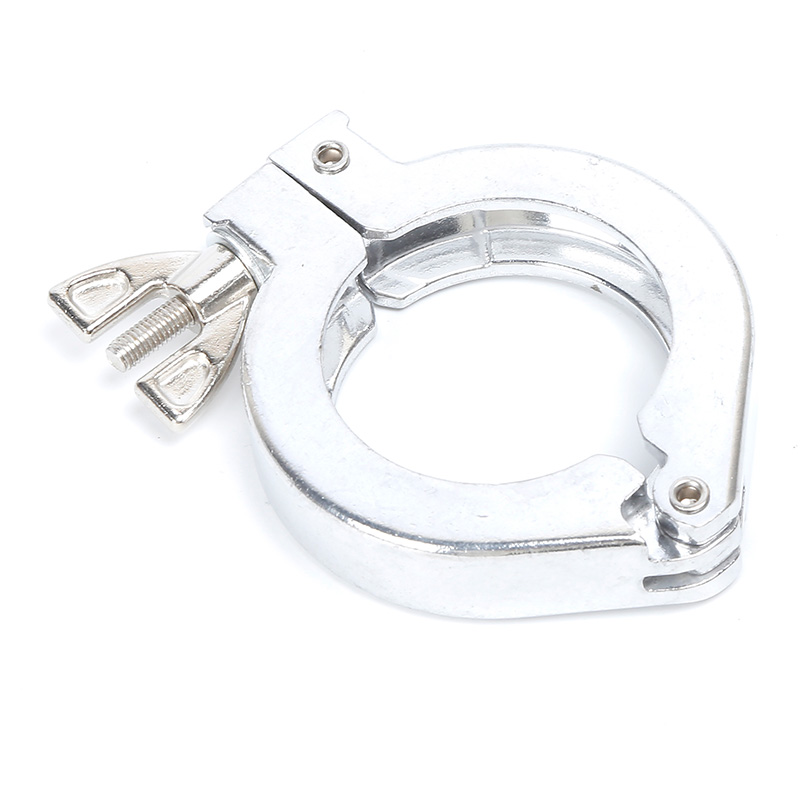

KF Single Pin Clamp

* Material:Aluminum

	Model for Alu	Size	A/mm		B/mm		N.W./g		Pcs/CTN
	FCC811K168	KF10-KF16	42.5		63		62.1		300
	FCC811K258	KF25	54		72		73.8		250
	FCC811K408	KF40	70		90		95.5		160
	FCC811K508	KF50	90		114		156.5		100

Toggle Clamps with Lanyard

* Material:Aluminum

	Model for Alu	Size		B/mm		C/mm		N.W./g
	FCC821K168	KF10-KF16		52		16.5		103
	FCC821K258	KF25		60		17.5		122
	FCC821K408	KF40		80		17.5		156.5
	FCC821K508	KF50		102		20.5		266.5
