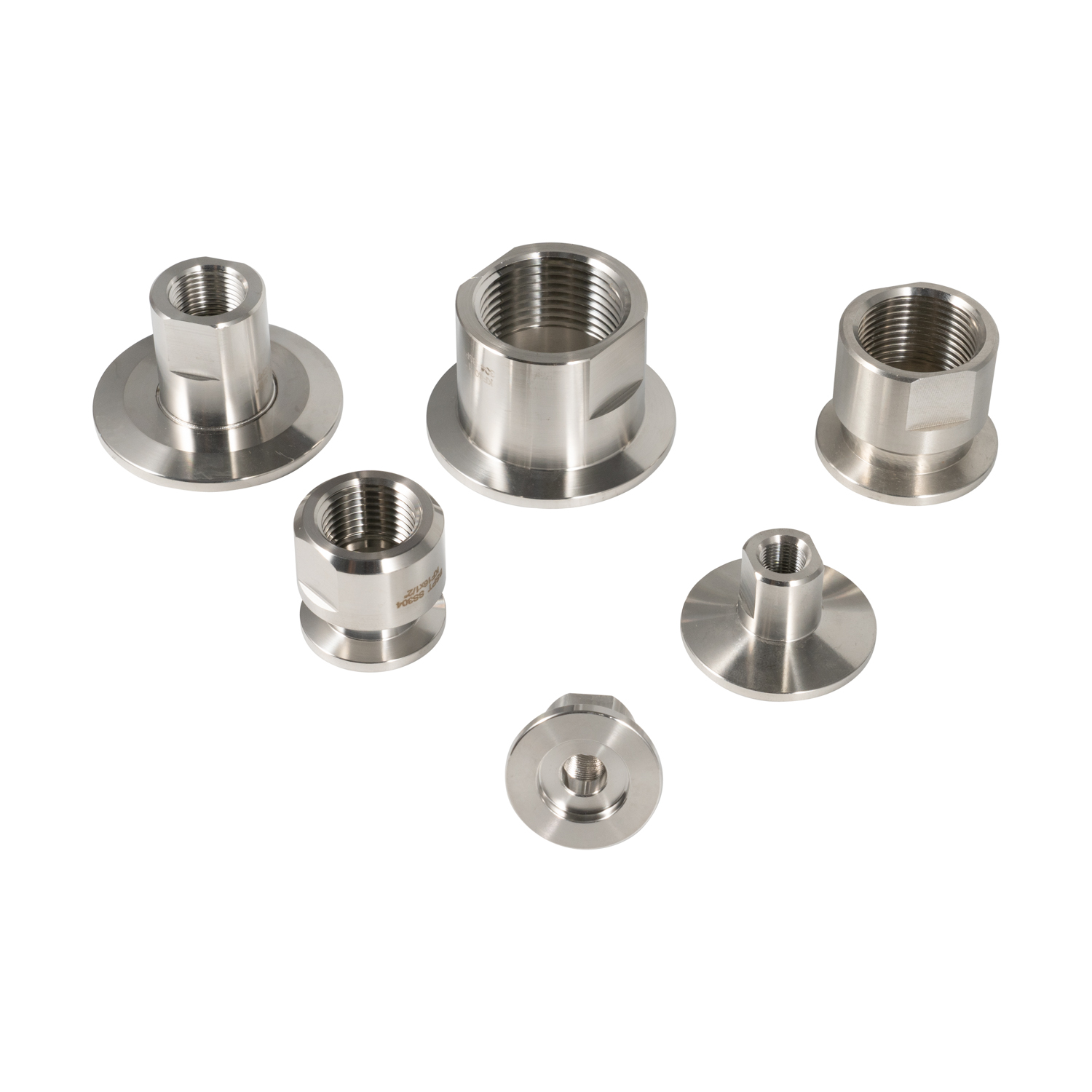

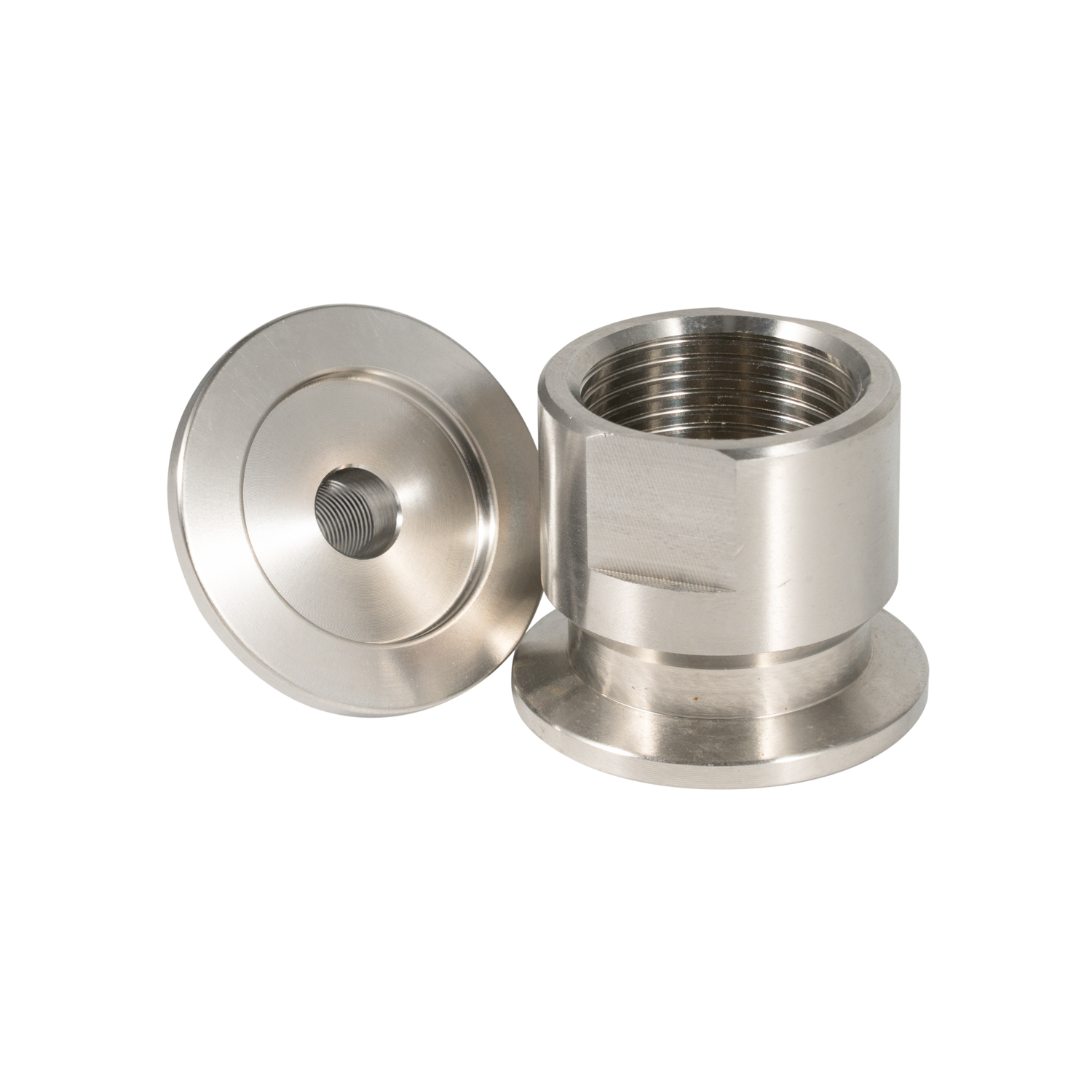

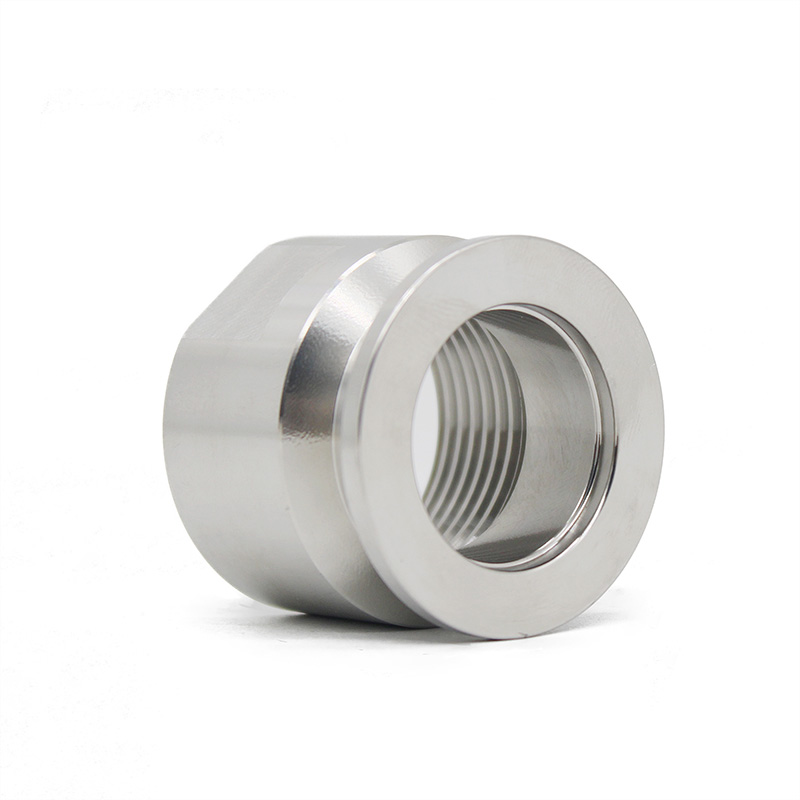

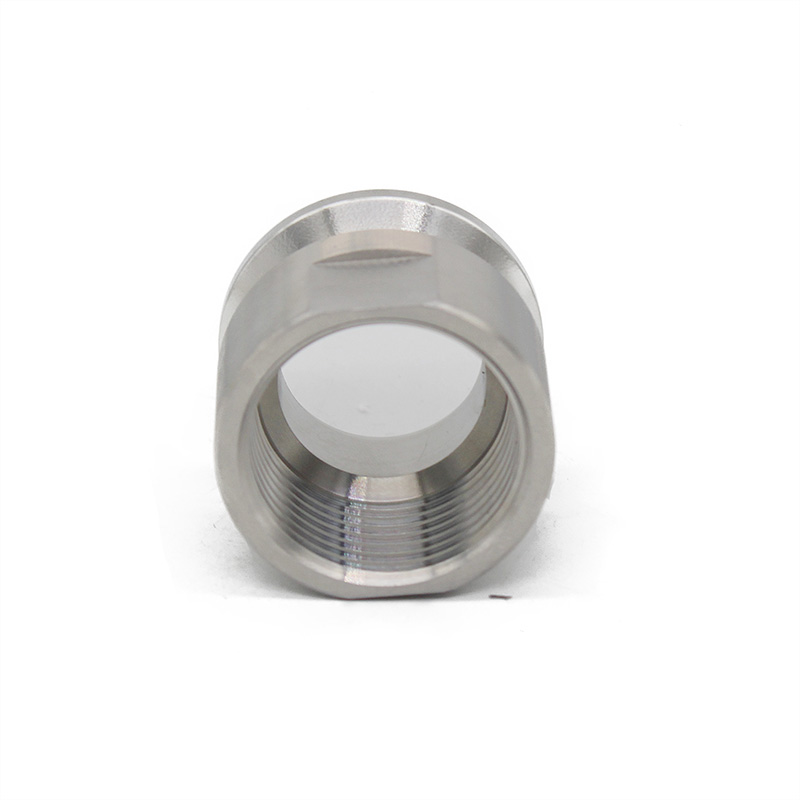

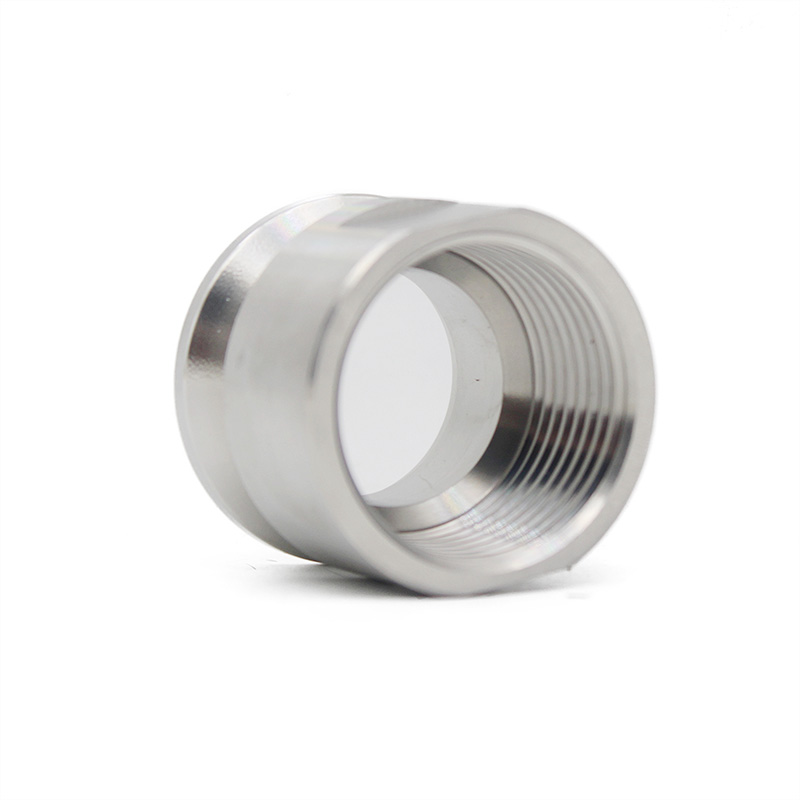

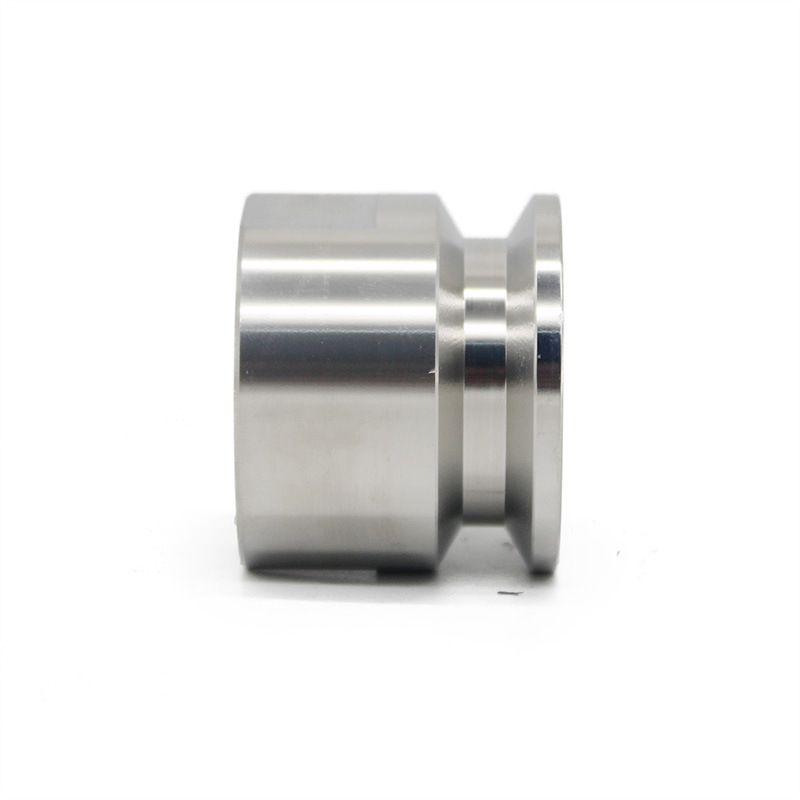

KF Female Thread Adaptor BSPT/NPT

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

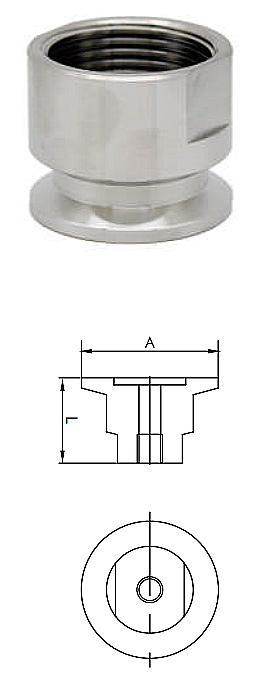

KF Female Adaptor

* Material:SS304/SS316L

	Model for 304		Size	A/mm	L/mm	N.W./g
	PT Thread	NPT Thread
	FLF821K160134S1	FLF822K160134S1	KF16x1/8"	30	20	44.2
	FLF821K160254S1	FLF822K160254S1	KF16x1/4"	30	20	44
	FLF821K160384S1	FLF822K160384S1	KF16x3/8"	30	28	61
	FLF821K160504S1	FLF822K160504S1	KF16x1/2"	30	30	80
	FLF821K160754S1	FLF822K160754S1	KF16x3/4"	30	32	88
	FLF821K250134S1	FLF822K250134S1	KF25x1/8"	40	25	50
	FLF821K250254S1	FLF822K250254S1	KF25x1/4"	40	25	63
	FLF821K250384S1	FLF822K250384S1	KF25x3/8"	40	25	74
	FLF821K250504S1	FLF822K250504S1	KF25x1/2"	40	28	74
	FLF821K250754S1	FLF822K250754S1	KF25x3/4"	40	35	98.3
	FLF821K251004S1	FLF822K251004S1	KF25x1"	40	35	121.4
	FLF821K400134S1	FLF822K400134S1	KF40x1/8"	40	35	100
	FLF821K400254S1	FLF822K400254S1	KF40x1/4"	40	35	120
	FLF821K400384S1	FLF822K400384S1	KF40x3/8"	40	35	135
	FLF821K400504S1	FLF822K400504S1	KF40x1/2"	40	35	145
	FLF821K400754S1	FLF822K400754S1	KF40x3/4"	55	32	147
	FLF821K401004S1	FLF822K401004S1	KF40x1"	55	35	172
	FLF821K401254S1	FLF822K401254S1	KF40x11/4"	55	35	264
	FLF821K401504S1	FLF822K401504S1	KF40x11/2"	55	38	214
	FLF821K500134S1	FLF822K500134S1	KF50x1/8"	75	40	175
	FLF821K500254S1	FLF822K500254S1	KF50x1/4"	75	40	196
	FLF821K500384S1	FLF822K500384S1	KF50x3/8"	75	40	208
	FLF821K500504S1	FLF822K500504S1	KF50x1/2"	75	40	242
	FLF821K500754S1	FLF822K500754S1	KF50x3/4"	75	40	202
	FLF821K501004S1	FLF822K501004S1	KF50x1"	75	40	259
	FLF821K501254S1	FLF822K501254S1	KF50x11/4"	75	40	328
	FLF821K501504S1	FLF822K501504S1	KF50x11/2"	75	45	269
	FLF821K502004S1	FLF822K502004S1	KF50x2"	75	45	430
