KF Bored Blank Flange

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

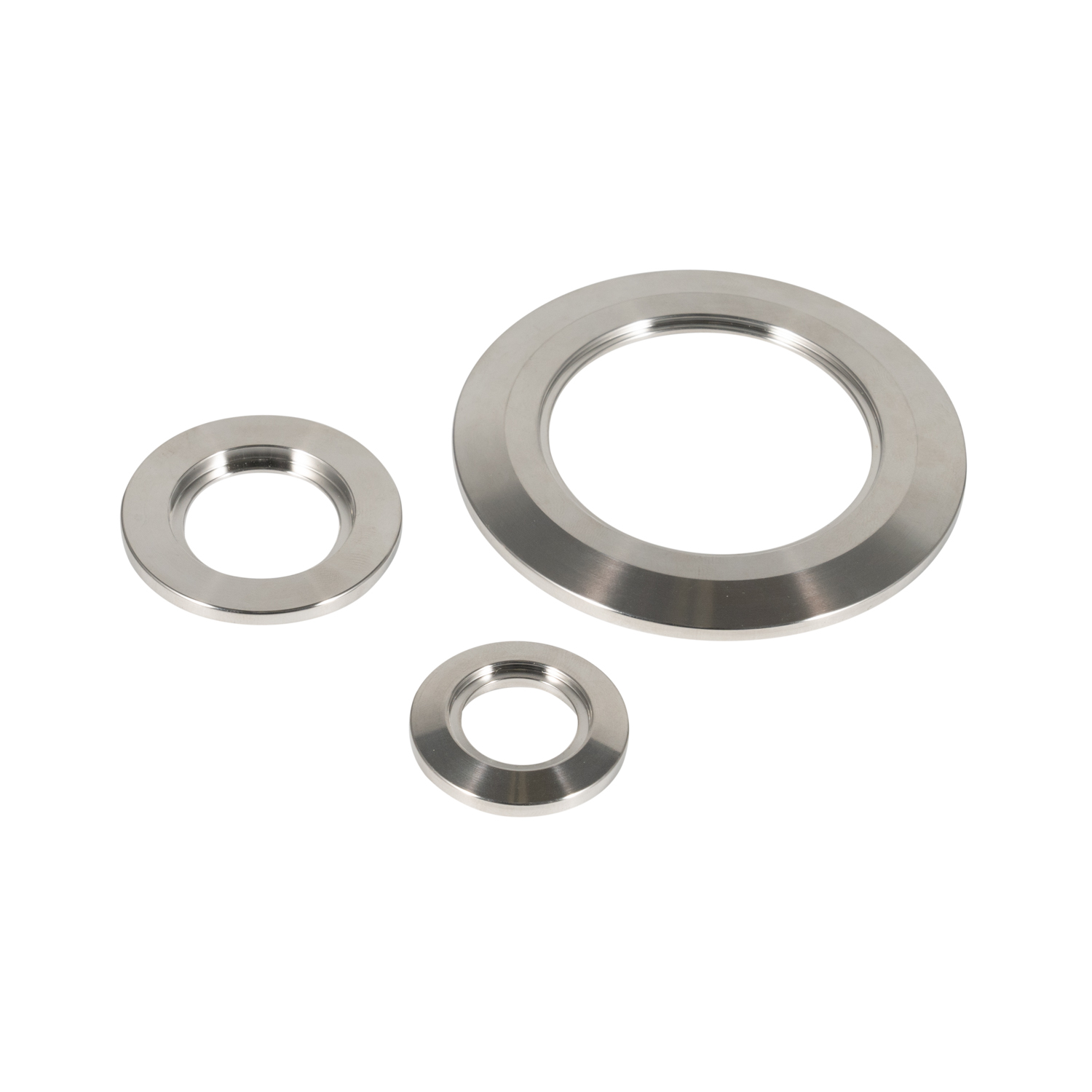

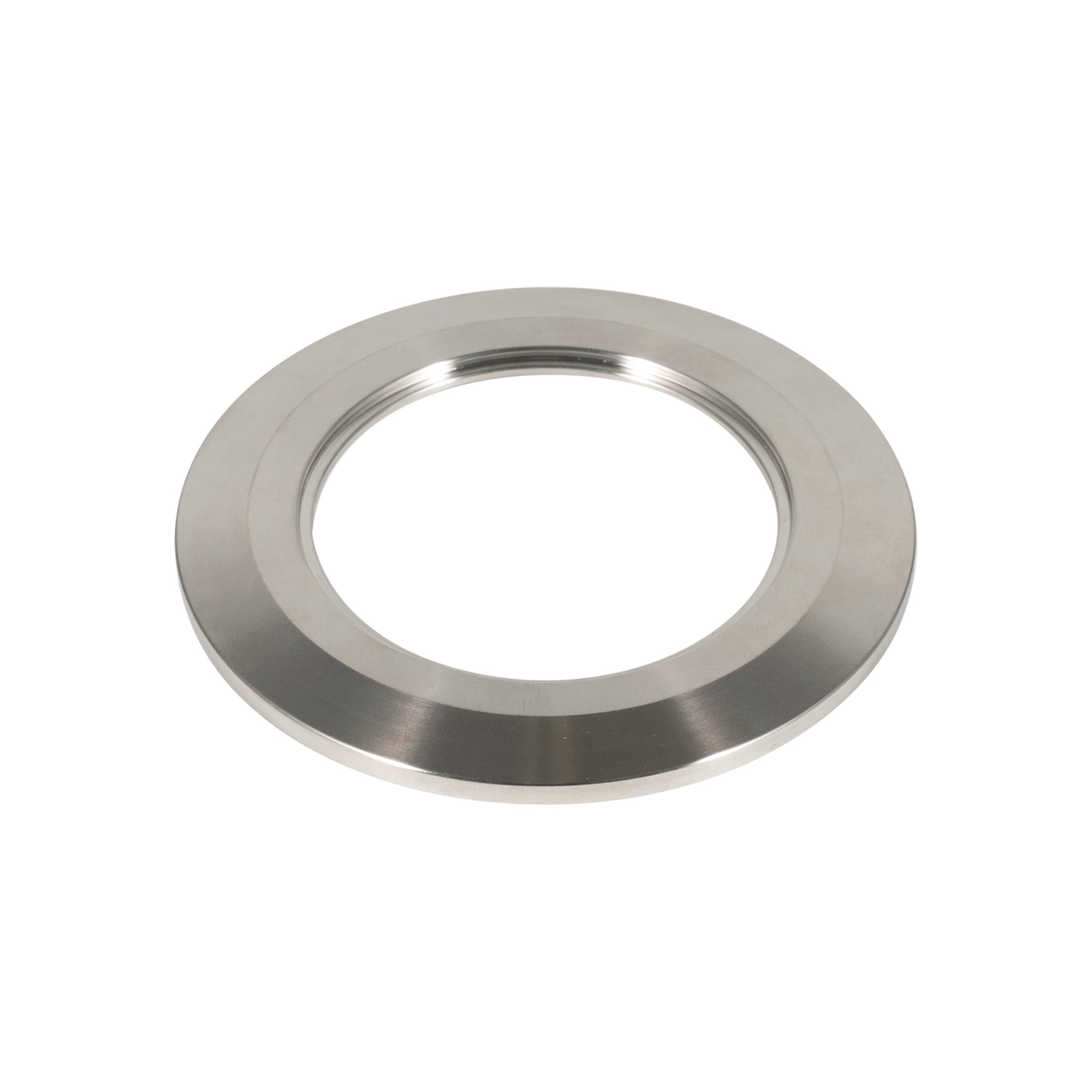

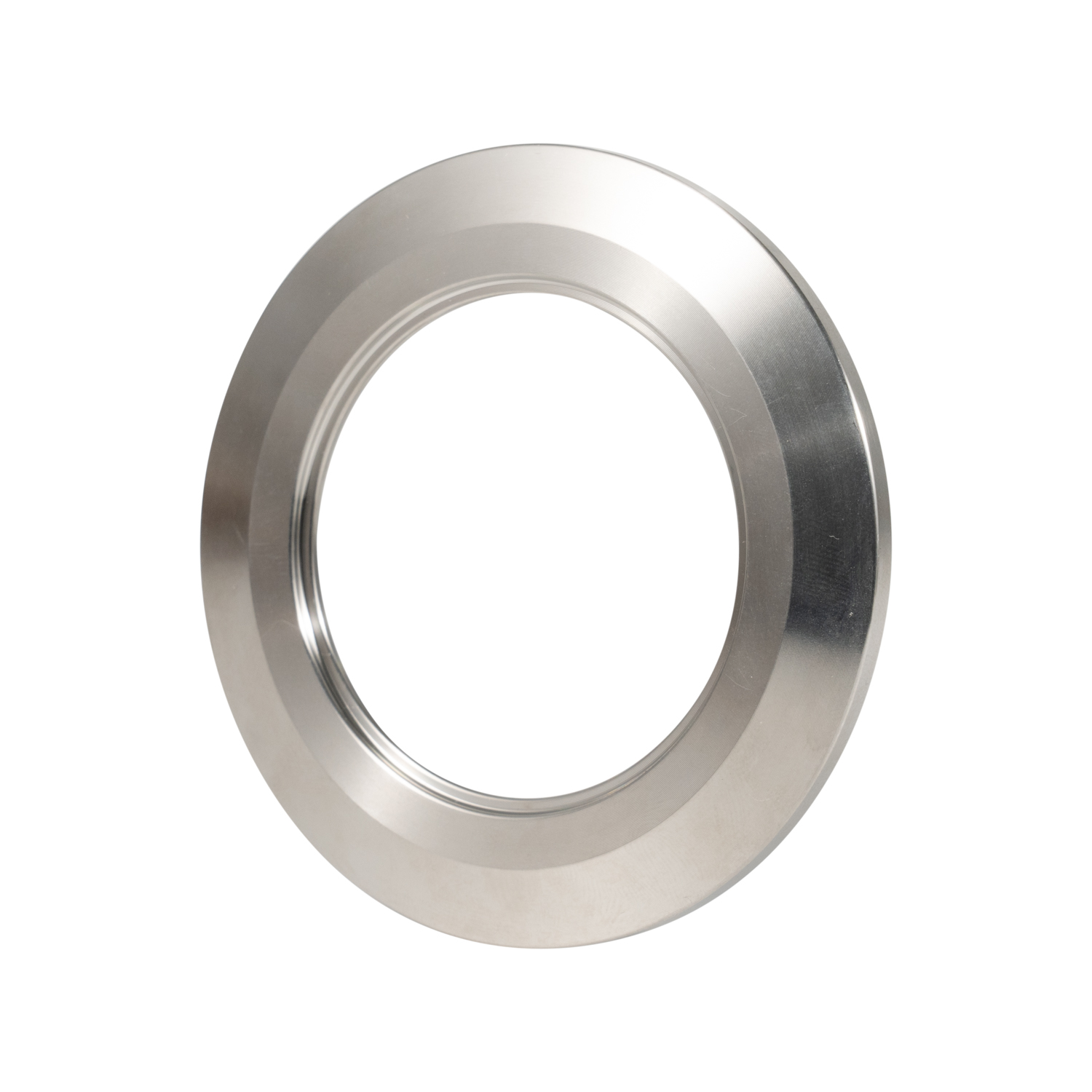

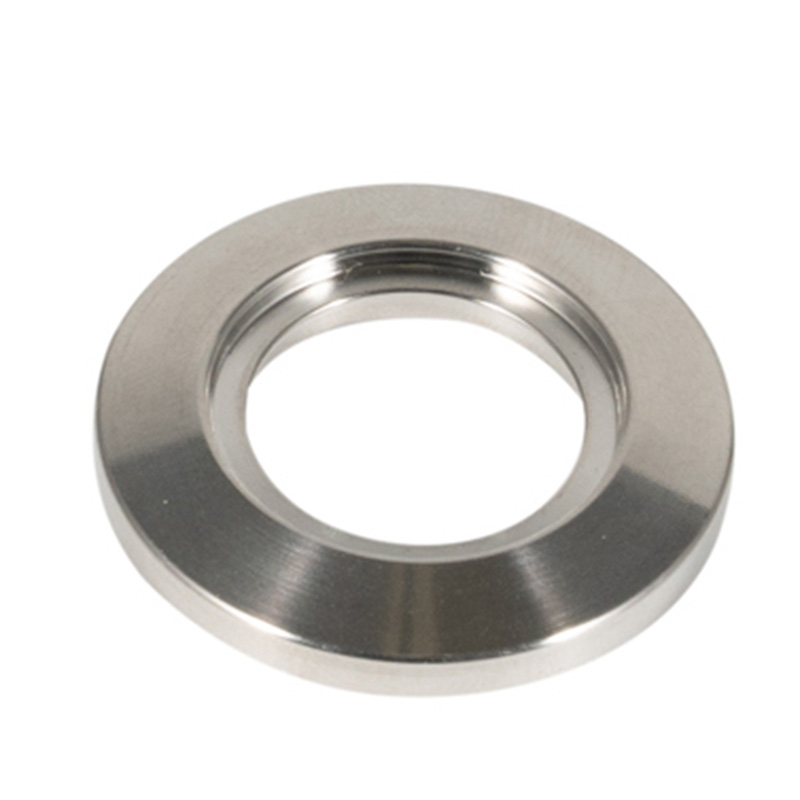

Bored Blank Flange

* Material:304/316L

	Model for 304		Size	A/mm	B/mm		C/mm	D/mm		For Tube OD		N.W./g
	FBA811K100504S1		KF10	30	12.2		5	12.9		1/2"
	FBA811K160754S1		KF16	30	17.2		5	19.3		3/4"		15
	FBA811K251004S1		KF25	40	26.2		5	25.7		1"		25
	FBA811K401504S1		KF40	55	41.2		5	38.4		11/2"
	FBA811K502004S1		KF50	75	52.2		5	51		2"		85
	FBA811K632504S1		KF63	87	70		5	63.7		21/2"
	FBA811K803004S1		KF80	114	83		12	76.4		3"
	FBA811K1004004S1		KF100	134	102		12	101.8		4“
	FBA811K1606004S1		KF160	190	153		12	152.9		6"
	FBA812K10D144S1		KF10	30	17.2		5	14.2		14mm
	FBA812K16D204S1		KF16	30	17.2		5	20.3		20mm		15
	FBA812K25D284S1		KF25	40	26.2		5	28.3		28mm		23
	FBA812K40D454S1		KF40	55	41.2		5	44.8		44.5mm
	FBA812K50D574S1		KF50	75	52.2		5	57.4		57mm		78
	FBA812K80D894S1		KF80	114	83		12	90.2		89mm
	FBA812K100D1084S1		KF100	134	102		12	108.3		108mm
	FBA812K160D1594S1		KF160	190	153		12	159.2		159mm
