ISO-KF Conical Reducing Adaptor

Applications

ISO-KF fittings can be used in a wide variety of applications including:
• Roughing and foreline plumbing
• Small systems
• Systems requiring frequent cleaning or modification
• Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure. Because of the large number of elastomer seals used.

Description

The ISO-KF system is a modular, building block method ofcreating a piping system. There are several advantages in the use of ISO components. Since component dimensions are standardized, elbows,tees, crosses or valves for a given size may be interchanged. The flanges are ''sexless'' and the seal is symmetrical, so that the components are rotatable. By using ISO components, system assembly is quick and cost effective. See Figure 1 for the ISO dimensions of flange sizes 10, 16, 25, 40 and 50. These dimensions apply to ISO-KF flanges of these nominal diameters throughout this catalog.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

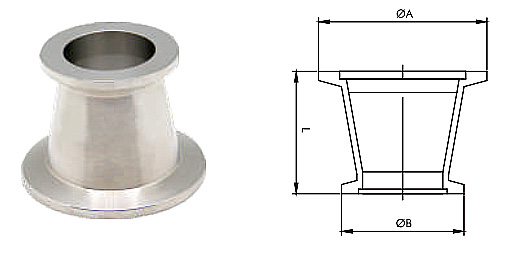

KF Conical Reducing Adaptor

* Material:SS304/SS316L

	Model for 304	Size	A/mm	B/mm	L/mm	N.W./g
	FRK011K16K104	KF16xKF10	30	30	40	58
	FRK011K25K104	KF25xKF10	40	30	40	84
	FRK011K25K164	KF25xKF16	40	30	40	75
	FRK011K40K164	KF40xKF16	55	30	40	100
	FRK011K40K254	KF40xKF25	55	40	40	114
	FRK011K50K164	KF50xKF16	75	30	40	116
	FRK011K50K254	KF50xKF25	75	40	40	178
	FRK011K50K404	KF50xKF40	75	55	40	200
