KF Weld Stub Short flange Vacuum Flange
KF Weld Stub Short flange Vacuum Flange
KF Weld Stub Short flange Vacuum Flange

KF Weld Stub Short flange Vacuum Flange

ApplicationISO-KF fttings can be used in a wide variety of aplications including:●Roughing and foreline plumbing●Small systems●Systems requiring frequent cleaning or modification●Research and teaching

Inquire Now

Application

ISO-KF fttings can be used in a wide variety of aplications including:
●Roughing and foreline plumbing
●Small systems
●Systems requiring frequent cleaning or modification
●Research and teaching laboratories
ISO-KF components are primarily designed for use at subatmospheric pressure.
Because of the large number of elastomer seals used.

Installation

The ISO-KF components are assembled by inserting a centering ring between the two flange faces, then securing the assembly with a flange encompassing clamp (see Figure 2).

Material and Size

• Flanges, Blanks, Fittings: Stainless Steel 304 or 316L
• Clamps: Aluminum or Stainless Steel 304
• Oring: Viton



Vacuum range

Elastomer seal: >= 1 x 10-8 Torr

Temperature range

Viton: -50°C to 200°C

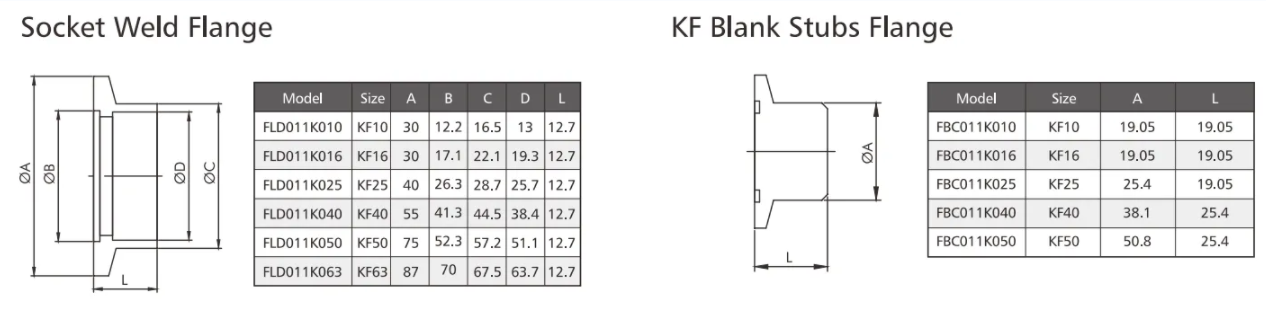

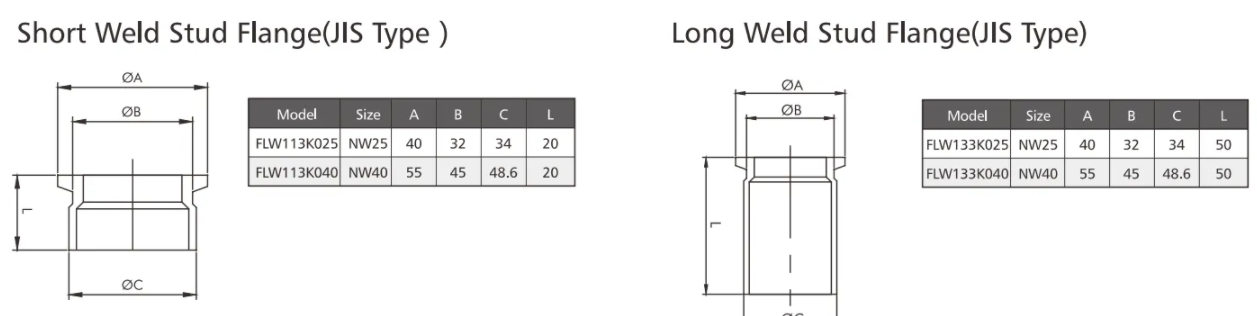

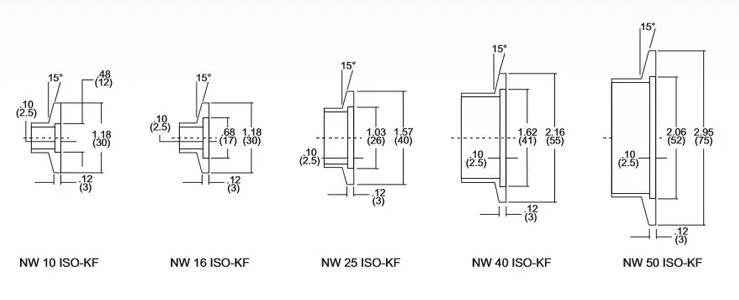

Drawing
