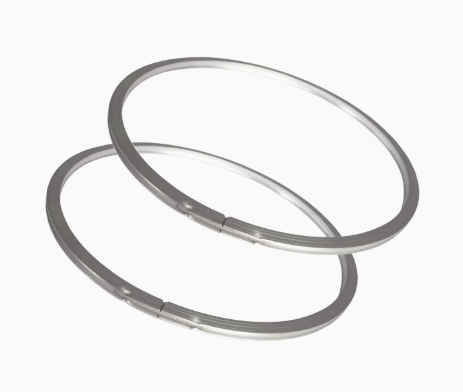

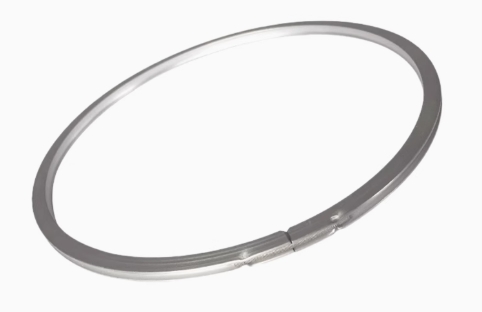

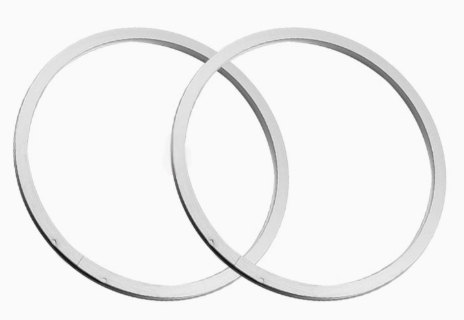

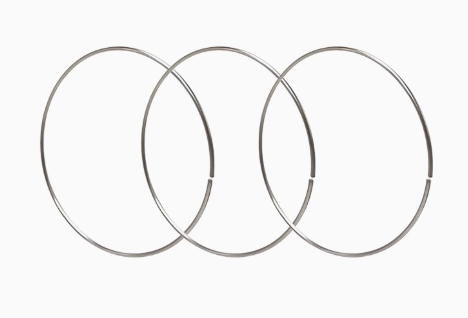

ISO Aluminum Outer Ring

Material

Material:Alumium

Description

ISO flanges are larger than KF flanges, similar to the KF flanges, they use a centering ring for sealing ISO flanges are widely used in systems that need frequent cleaning or disassembly.

There are two different methods to join the flanges together:1. Bolts (ls0-f see diagram C) or 2. Claw clamps (ls0-k, see diagram A). These two flanges look very different, yet they can be joined together by using a single claw clamp (see diagram B).

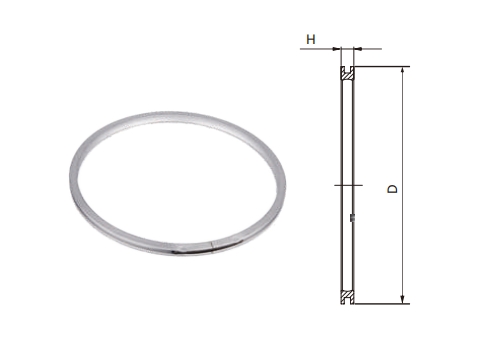

	Model for Alu	Size(ISO/NW)	H/mm	D/mm	N.W./g
	FLG831S638	63	4	94	6
	FLG831S808	80	4	109	11.6
	FLG83151008	100	4	128	13.5
	FLG831S1258	125	4	152	16.8
	FLG831S1608	160	4	179	19.2
	FLG831S2008	200	4	238	25.8
	FLG831S2508	250	4	287
	FLG831S3208	320	4	344
	FLG831S4008	400	4	446
	FLG831S5008	500	4	535
