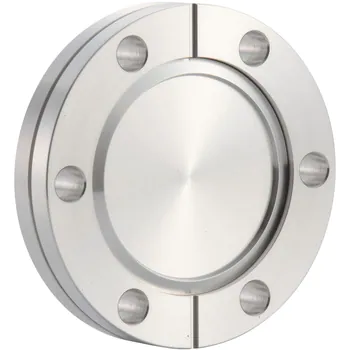

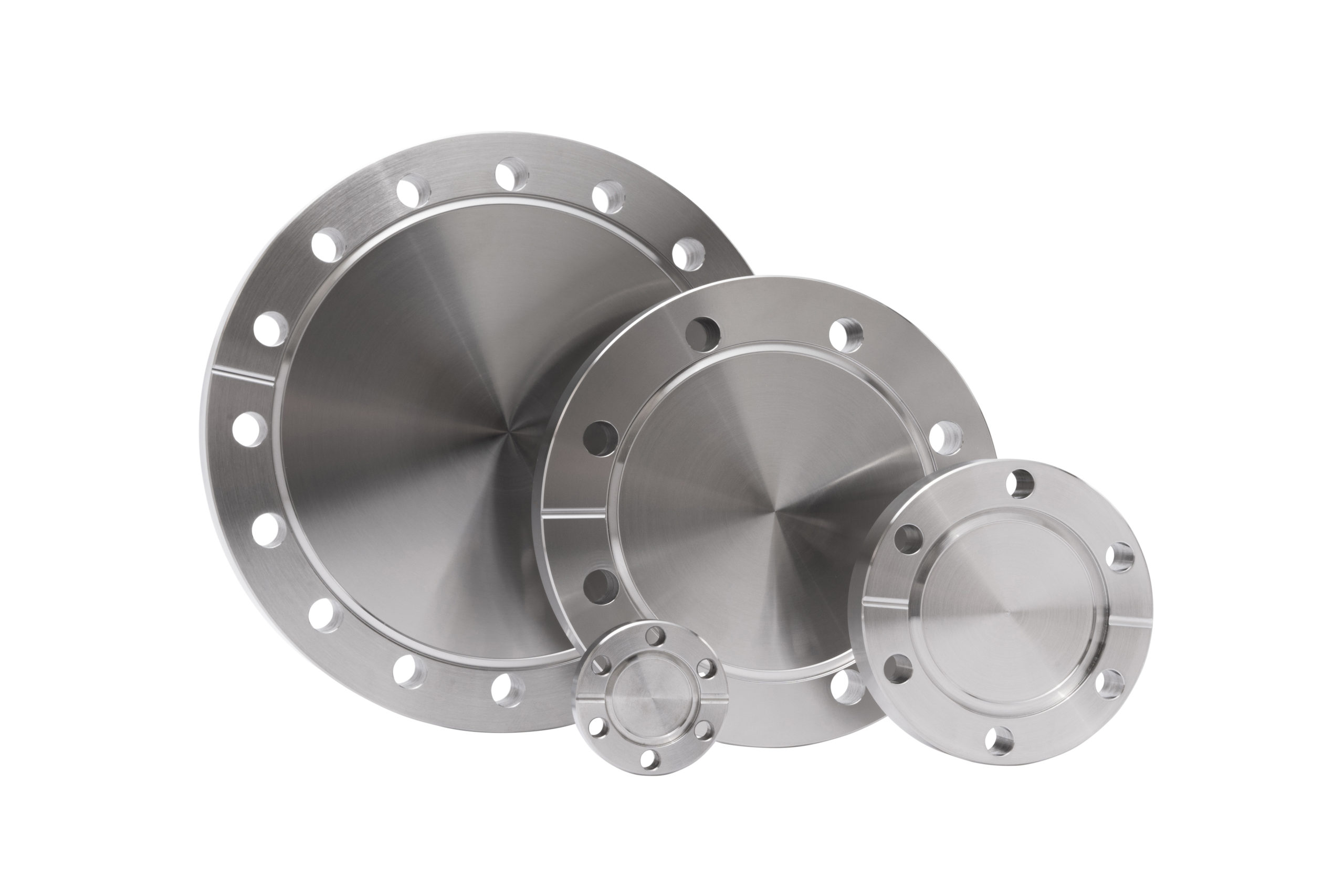

Name: CF Blanker,Fixed
Brand: QIMING
SKU: 00007
Rating: 4.1 (54 reviews)

CF FLANGE SERIES

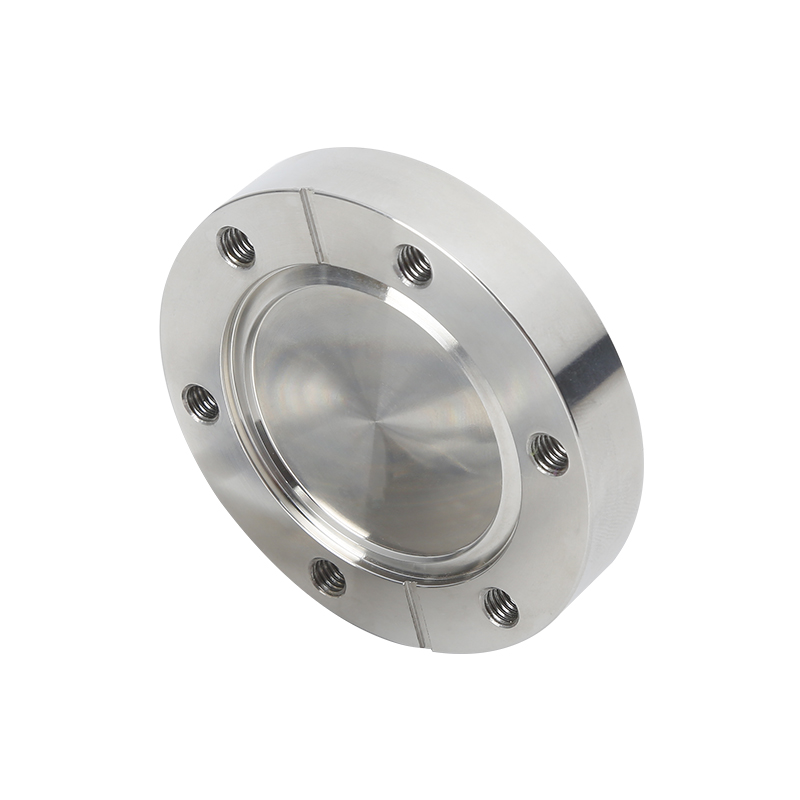

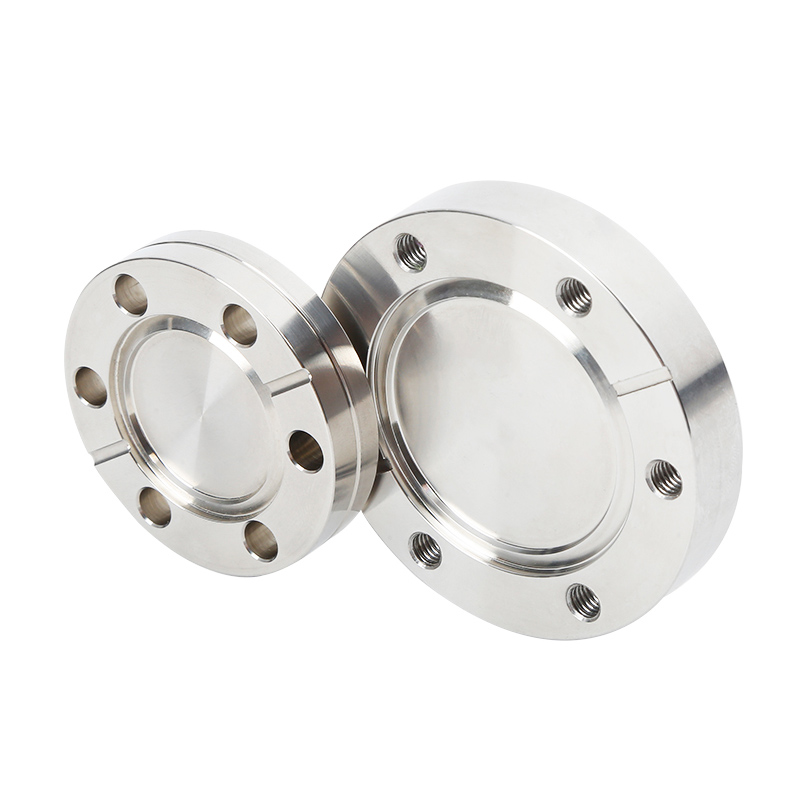

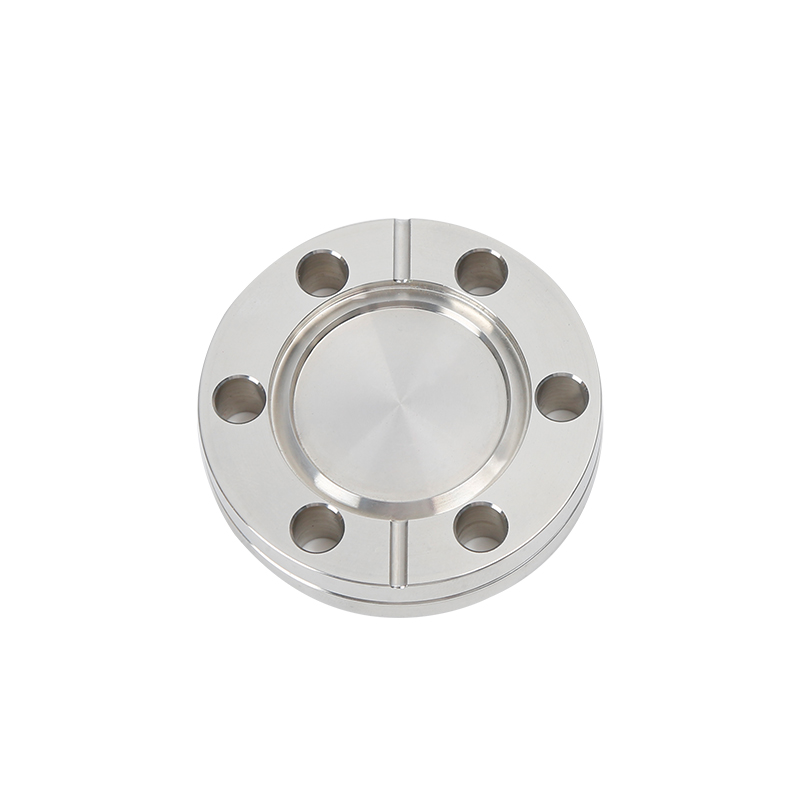

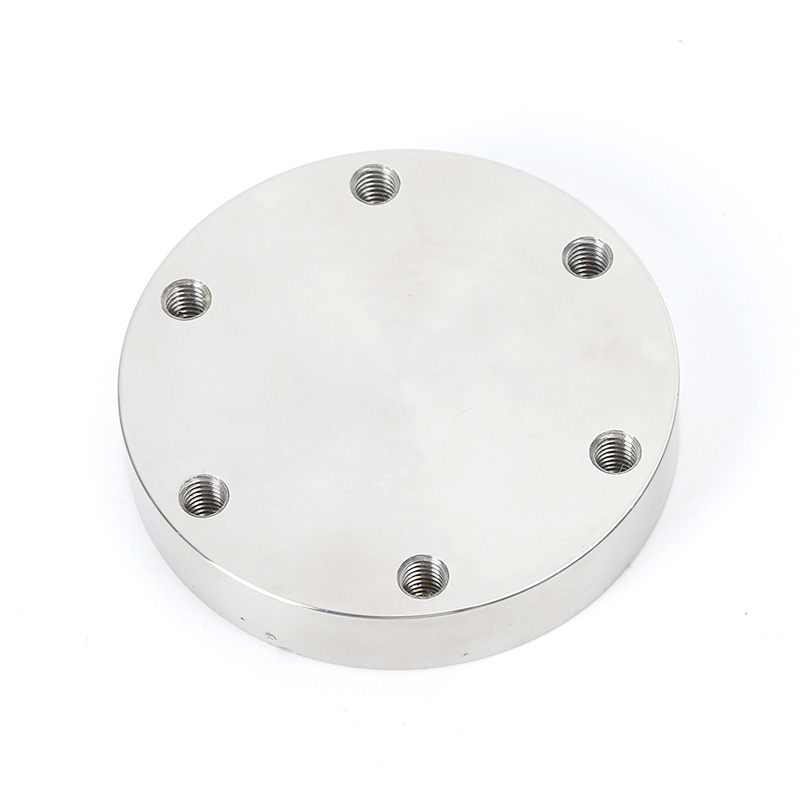

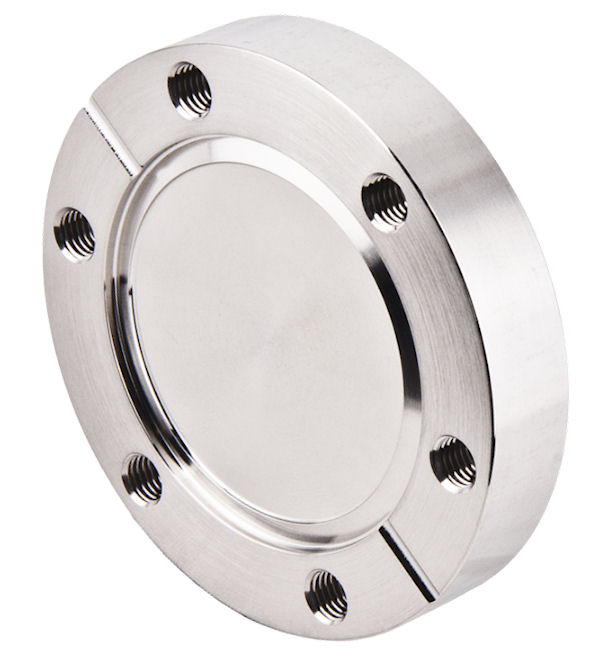

CF flanges are available with tapped or untapped holes. Tapped flanges are available in UNCUNf or metric threads. Tapped tlanges have through holes, so bolts may protrude slightly from the back of the flange when fastened to an untapped
flange. Untapped Cf flanges can be fastened to each other with stainless steel bolts and hex nuts or plate nuts. Plate nuts center themselves over two adjacent holes and can be held in place with one finger while the bolts are tightened. They are avallable for most flange sizes from 1 1/3 to 10 inch (33.96-254mm) ODs. As an alternative to hex head bolts, 12-point bolts are available for CF flanges from 2 3/4 to 10 inch (33.96 to 354mm) ODs. Silver plated bolts eliminate the need for anti-seize compoundin clean room environments.

ASSEMBLY INSTRUCTIONS FOR CF FLANGES

1. Apply a small amount of high temperature anti-seize compound to the bolt threads

2. Check that both flange surfaces are clean and sealing edges are free from nicks and scratches.

3. Using clean, lint free gloves, unpack gasket.

4. Place gasket in the knife edge counterbore of nonrotatable flange.

5.Align the mating hole pattern and leak test grooves.

6. Install the proper bolts and tighten hand tight. Check to see that the flange faces are parallel.

7. Tighten the bolts 1/4 to 1/2 turns using a star pattern until the flange faces are metal to metal.

8. Torque the fasteners to the listed value using the same pattern.

* U.S. manufacturers of CF flanges name them according to their outer diameter measured in inches i.e. a CF600 flange has an outer diameter of approximately 6 inches.

* European identification for these flanges is expressed in a variety of ways; the flange outer diameter is measured in millimeters or the flange inner diameter counterbore (the area machined to accept tubing for welding)is measured in. millimeters or the inner diameter of the largest through bore is measured in millimeters. Measurements are rounded to the nearest millimeter for naming purposes.

* U.S. and Metric CF flanges are compatible. The only difference in design is that metric flanges have a metric bolt thread machined into tapped bolt holes. QiMing can provide both metric tapped flanges on request.

U.S.Flange Size	DIN Standard	European Sizes	Flange Outer Dia
U.S.Flange Size	DIN Standard	European Sizes	Inch	Millimeter
CF133	DN16 CF	CF16	1.33"	33.8
CF212		CF25	2.12"	53.8
CF275	DN35 CF	CF35	2.75"	70
CF275		CF40	2.75"	85.7
CF338		CF50	3.38"	114.3
CF450	DN63 CF	CF63	4.5"	117.5
CF462		CF80	4.62"	152.4
CF600	DN100 CF	CF100	6"	203.2
CF675		CF130	6.75"	254
CF800	DN150 CF	CF160	8"	304
CF1000	DN200 CF	CF200	10"	336.6
CF1200	DN250 CF	CF250	12	355.6
CF1325		CF270	13.25"	419.1
CF1400	DN300 CF	CF300	14"	355.6
CF1650	DN350 CF	CF350	16.5"	419.1

Torque Specifications

* Material:SS304/SS316L

* Tapped and Through Holes

Thru Holes

Model for 304	Size	A(Inch/mm)	D(lnch/mm)	Bolt Hole		PCD(Inch/mm)	PCD(Inch/mm)	N.W./g
Model for 304	Size	A(Inch/mm)	D(lnch/mm)	Dia	No.	PCD(Inch/mm)	PCD(Inch/mm)	N.W./g
GBF01H1F164	CF16	1.33"/33.8	0.3"/7.6	0.172"/4.4mm	6	1.062"/26.97	6
GBF01H1F254	CF25	2.12"/53.8	0.47"/11.9	0.265"/6.7mm	6	1.625"/41.28	6	180
GBF01H1F354	CF35	2.75"/70	0.5"/12.7	0.265"/6.7mm	6	2.312"/58.72	6	350
GBF01H1F504	CF50	3.38"/85.7	0.62"/15.75	0.332"/8.43mm	8	2.85"/72.39	6
GBF01H1F634	CF63	4.5"/1 14.3	0.68"/17.4	0.332"/8.43mm	8	3.628"/92.15	6
GBF01H1F804	CF80	4.62"/117.5	0.75"/19.1	0.332"/8.43mm	10	4.03"/1 02.4	6
GBF01H1F1004	CF100	6"/152.4	0.78"/19.9	0.332"/8.43mm	16	5.128"/130.25	8
GBF01H1F1604	CF160	8"/203.2	0.88"/22.3	0.332"/8.43mm	20	7.128"/181.05	8
GBF01H1F2004	CF200	10"/254	0.97"/24.6	0.332"/8.43mm	24	9.128"/231.85	8
GBF01H1F2504	CF250	12"/304	1.12"/28.45	0.332"/8.43mm	32	11.181"/283.97	10
GBF01H1F2704	CF270	13.25"/336.6	1.12"/28.45	0.39"/9.9mm	30	12.06"/306.3	10
GBF01H1F3004	CF300	14"/355.6	1.12"/28.45	0.39"/9.9mm	30	12.81"/325.4	16
GBF01H1F3504	CF350	16.5"/419.1	1.12"/28.45	0.39"/9.9mm	36	15.31"/388.9	20

Metric Thread

Model for 304	Size	A(Inch/mm)	D(Inch/mm)	Metric Thread		PCD(Inch/mm)	N.W./g
Model for 304	Size	A(Inch/mm)	D(Inch/mm)	Thread	No.	PCD(Inch/mm)	N.W./g
GBFO1M1F164	CF16	1.33"/33.8	0.3"/7.6	M4	6	1.062"/26.97
GBF01M1F254	CF25	2.12"/53.8	0.47"/11.9	M6	6	1.625"/41.28	180
GBF01M1F354	CF35	2.75"/70	0.5"/12.7	M6	6	2.312"/58.72	350
GBF01M1F504	CF50	3.38"/85.7	0.62"/15.75	M8	8	2.85"/72.39
GBF01M1F634	CF63	4.5"/1 14.3	0.68"/17.4	M8	8	3.628"/92.15
GBFO1M1F804	CF80	4.62"/117.5	0.75"/19.1	M8	10	4.03"/102.4
GBF01M1F1004	CF100	6"/152.4	0.78"/19.9	M8	16	5.128"/130.25
GBF01M1F1604	CF160	8"/203.2	0.88"/22.3	M8	20	7.128"/181.05
GBF01M1F2004	CF200	10"/254	0.97"/24.6	M8	24	9.128"/231.85
GBF01M1F2504	CF250	12"/304	1.12"/28.45	M8	32	11.181"/283.97
GBF01M1F2704	CF270	13.25"/336.6	1.12"/28.45	M10	30	12.06"/306.3
GBF01M1F3004	CF300	14"/355.6	1.12"/28.45	M10	30	12.81"/325.4
GBF01M1F3504	CF350	16.5"/419.1	1.12"/28.45	M10	36	15.31"/388.9

UNC Thread

Model for 304	Size	A(Inch/mm)	D(lnch/mm)	UNC Thread		PCD(Inch/mm)	N.W./g
Model for 304	Size	A(Inch/mm)	D(lnch/mm)	Thread	No.	PCD(Inch/mm)	N.W./g
GBFO1T1F164	CF16	1.33"/33.8	0.3"/7.6	8-32	6	1.062"/26.97
GBF01T1F254	CF25	2.12"/53.8	0.47"/11.9	1/4-28	6	1.625"/41.28	180
GBF01T1 F354	CF35	2.75"/70	0.5"/12.7	1/4-28	6	2.312"/58.72	350
GBF01T1F504	CF50	3.38"/85.7	0.62"/15.75	5/16-24	8	2.85"/72.39
GBF01T1F634	CF63	4.5"/114.3	0.68"/17.4	5/16-24	8	3.628"/92.15
GBF01T1F804	CF80	4.62"/117.5	0.75"/19.1	5/16-24	10	4.03"/102.4
GBF01T1F1004	CF100	6"/152.4	0.78"/19.9	5/16-24	16	5.128"/130.25
GBF01T1F1604	CF160	8"/203.2	0.88"/22.3	5/16-24	20	7.128"/181.05
GBF01T1F2004	CF200	10"/254	0.97"/24.6	5/16-24	24	9.128"/231.85
GBF01T1F2504	CF250	12"/304	1.12"/28.45	5/16-24	32	11.181"/283.97
GBF01T1F2704	CF270	13.25"/336.6	1.12"/28.45	3/8-24	30	12.06"/306.3
GBF01T1F3004	CF300	14"/355.6	1.12"/28.45	3/8-24	30	12.81"/325.4
GBF01T1F3504	CF350	16.5"/419.1	1.12"/28.45	3/8-24	36	15.31"/388.9
